CNC
SR20J TYPE C
Characteristics
- · CNC automatic lathe for complex, customer-specific components utilizing cutting-edge technology
- · Achieves high productivity by means of low cost, stable space, and multi-function control

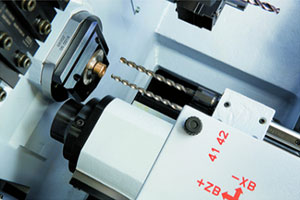

- · Supports up to 100 mm deep hole drilling with square two-axis attachment
- · Convenient gear change
Video
Specification
| Product Specifications | |||
| 20J type C | 20J type N | ||
| Maximum machining diameter | ø20mm | ||
| Maximum stroke | Default | 205mm | 55mm (max) |
| Magic guide bush | 172mm | ||
| 4-spindle sleeve holder | Drilling capacity (max) | ø10mm | |
| tapping capacity (max) | M8 x P1.25 | ||
| Front 2-spindle sleeve holder | Number of tools | 2 | |
| Drilling capacity (max) | ø8mm | ||
| Hole depth (max) | 100mm | ||
| Rotational tool | Drilling capacity (max) | ø8mm | |
| tapping capacity (max) | M6 x P1.0 | ||
| Spindle speed (max) | max8,000/1min | ||
| Drive motor | 1.2KW | ||
| Spindle split | C-axis control | ||
| Main spindle speed | max.10,000/1min | ||
| Main spindle motor | 2.2KW(continuous)/3.7KW(15min) | ||
| Back tool table | ||
| Chucking diameter (max) | ø20mm | |
| Product length (max) | 80mm | |
| Parts extension (max) | 30mm | |
| 4-spindle rear tool unit | Drilling capacity (max)-Fixation tool | ø8mm |
| Drilling capacity (max)-Rotational tool | ø5mm | |
| Tapping capacity(max)-Fixation tool | M8 x P1.25 | |
| Tapping capacity(max)-Rotational tool | M4 x P0.7 | |
| Sub-axis division | C-axis control | |
| Sub-spindle speed | max.8,000/1min | |
| Sub-spindle motor | 1.5KW(continuous)/2.2KW(15min) | |
