CNC

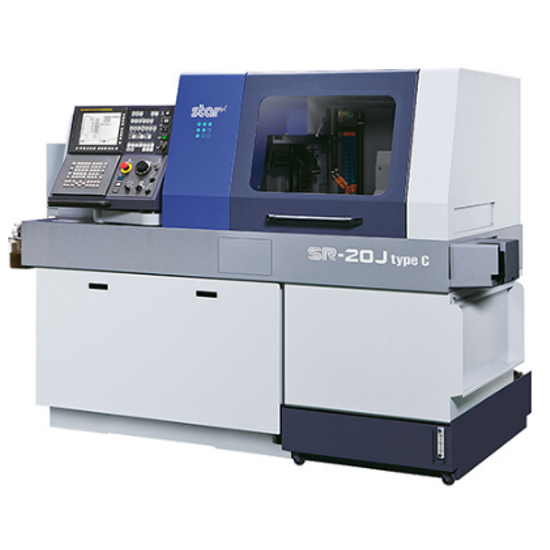

SR-20J
Characteristics
- · CNC automatic lathe for complex, customer-specific components utilizing cutting-edge technology
- · Achieves high productivity by means of low cost, stable space, and multi-function control
- · Supports up to 100 mm deep hole drilling with square two-axis attachment
- · Enhanced rigidity with unique “SLANT-type bed type tool table
Video
Specification
Product Specifications | |||
20J type C | 20J type N | ||
Maximum machining diameter | ø20mm | ||
Maximum stroke | Default | 205mm | 55mm (max) |
Magic guide bush | 172mm | ||
4-spindle sleeve holder | Drilling capacity (max) | ø10mm | |
tapping capacity (max) | M8 x P1.25 | ||
Front 2-spindle sleeve holder | Number of tools | 2 | |
Drilling capacity (max) | ø8mm | ||
Hole depth (max) | 100mm | ||
Rotational tool | Drilling capacity (max) | ø8mm | |
tapping capacity (max) | M6 x P1.0 | ||
Spindle speed (max) | max8,000/1min | ||
Drive motor | 1.2KW | ||
Spindle split | C-axis control | ||
Main spindle speed | max.10,000/1min | ||
Main spindle motor | 2.2KW(continuous)/3.7KW(15min) |
Back tool table | ||
Chucking diameter (max) | ø20mm | |
Product length (max) | 80mm | |
Parts extension (max) | 30mm | |
4-spindle rear tool unit | Drilling capacity(max)-Fixation tool | ø8mm |
Drilling capacity(max)-Rotational tool | ø5mm | |
Tapping capacity(max)-Fixation tool | M8 x P1.25 | |
Tapping capacity(max)-Rotational tool | M4 x P0.7 | |
Sub-axis division | C-axis control | |
Sub-spindle speed | max.8,000/1min | |
Sub-spindle motor | 1.5KW(continuous)/2.2KW(15 min) |
