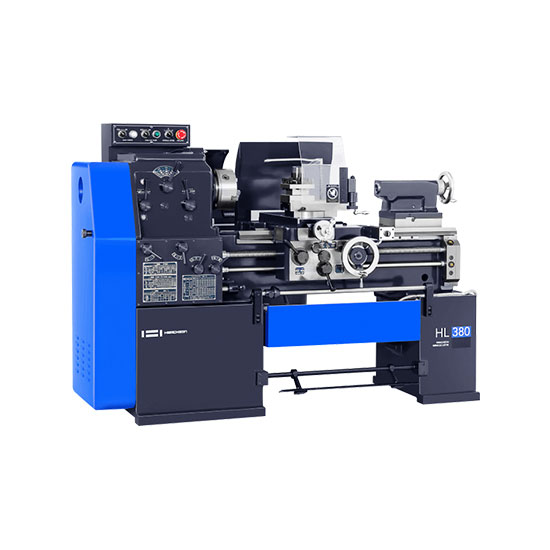

HL-380X750
Characteristics
- · Convenient gear change
The standard chuck size is 7 inches, and optional chuck sizes of 8/9/10/12 inches are also available. Reduced cutting time and increased user convenience by use of a lever (1 piece) to switch between inch and metric thread cutting - · Increased user convenience
The lever allows for simple operation of the carriage, and the brake pedal is used to expand the control range. - · Tailstock
The strong clamping force of the tailstock secures the material and enables precise machining and stable work. - · High-rigidity bed
The bed is designed for optimal shock and vibration absorption, and its sliding surfaces have been heat-treated and ground.
Video
Specification
| Product Details | |
| Swing-over bed [mm] | ø400 |
| Distance between centers [mm] | 750 |
| Swing-over cross slide [mm] | ø238 |
| Spindle nose [KS] | A2-5 |
| Spindle speed [rpm] | 1,800 |
| Spindle taper at center [MT] | 4 |
| Taper of spindle bore [MT] | 6 |
| Diameter of the through spindle hole [mm] | ø52 |
| Quill taper [MT] | 4 |
| Spindle motor [KW] | 3/2 |
| Energy supply [kVA] | 6 |
