CNC

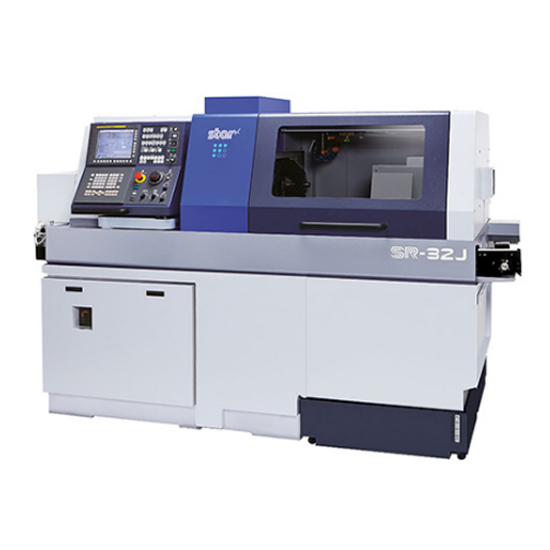

SR-32J
Characteristics
- · Achieves large workpiece processing with high precision, high output, and low cost
- · Reduced machining time by simultaneously machining the front and rear
- · Realization of high rigidity with tool table and tool table with slanted bed
- · Reduced production costs due to reduction in residual length (N.G.B)
Optimal response to forging machining, and powerful main/sub chucking (hydraulic chuck)
Video
Specification
| Product Specifications | |||
| 32J | 32J type N | ||
| Maximum machining diameter | ø32mm/ø34mm | ||
| Maximum stroke | Default | 310mm | 80mm (max) |
| Magic guide bush | 280mm | ||
| 4-spindle sleeve holder | Drilling capacity (max) | ø13mm | |
| tapping capacity (max) | M12 x P1.75 | ||
| 회전공구 | Drilling capacity (max) | ø8mm | |
| tapping capacity (max) | M6 x P1.0 | ||
| Spindle speed (max) | max5,000/1min | ||
| Drive motor | 1.2KW | ||
| Spindle split | C-axis control | ||
| Main spindle speed | max.7,000/1min | ||
| Main spindle motor | 5.5KW(continuous)/7.5KW(15min) | ||
| Back tool table | ||
| Chucking diameter (max) | ø32mm | |
| Product length (max) | 125mm | |
| Parts extension (max) | 45mm | |
| 4-spindle rear tool unit | Drilling capacity (max)-Fixation tool | ø13mm |
| Drilling capacity (max)-Rotational tool | ø16mm | |
| Tapping capacity (max)-Fixation tool | M10 x P1.5 | |
| Tapping capacity (max)-Rotational tool | M5 x P0.8 | |
| Sub-axis division | C-axis control | |
| Sub-spindle speed | max.7,000/1min | |
| Sub-spindle motor | 2.2KW(continuous)/3.7KW(15 min) | |
