CNC

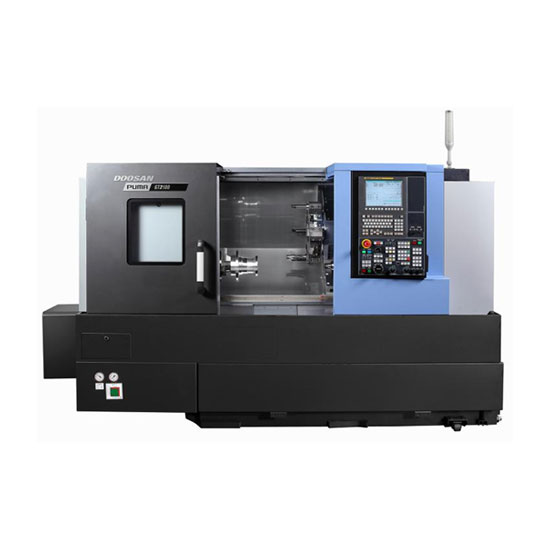

PUMA-GT2100M
Product Overview
This global standard turning center is the fruit of Doosan’s accumulated experience and technology that leads the turning center market.
- · Reduced noise and vibration by shortening the spindle-side belt
- · Maximized space utilization by minimizing the installation area
- · Minimize power consumption to increase energy efficiency, reduce installation and maintenance costs, and protect the environment
Video
Specification
| Specifications | |||||
| Description | Unit | PUMA GT2100 | PUMA GT2100M | ||
| Machining ability | Maximum machining diameter | mm | 390 | 300 | |
| Maximum machining length | mm | 562 | 513 | ||
| Maximum machining bar diameter | mm | 65 | 65 | ||
| Main spindle (main axis) | Rotation speed | r/mm | 4500 | 4500 | |
| Transfer | Transfer speed | X axis | mm | 230 | 230 |
| Z axis | mm | 580 | 580 | ||
| Metal transfer speed | X axis | m/min | 24 | 24 | |
| Z axis | m/min | 30 | 30 | ||
| Tool table | Number of tools attached | ea | 12 | 12 | |
| Outer bite size | mm | 25x25 | 25x25 | ||
| Boring bar diameter | mm | 40 | 40 | ||
